In general, the anchor bolt refers to the metal expansion screw. The anchor bolt is fixed using the wedge-shaped slope to promote expansion and create a frictional gripping force to achieve the fixing effect. Screws have threads on one end and tapered ends on the other. There is an iron sheet (some steel pipes) on the outside, and half of the iron sheet cylinder (steel pipe) has several incisions. After you have inserted them into the hole in the wall, lock the nut. When the nut is tightened, the screw is withdrawn, and the taper is pulled into the iron sheet cylinder. The iron cylinder is opened, so it is tightly mounted on the wall, which is for fastening guardrails, awnings, air conditioners, etc. to cement, bricks, and other surfaces. However, its fixation is not very reliable. Installing ceiling fans is not recommended if the load has a large vibration, as it may loosen.
 |

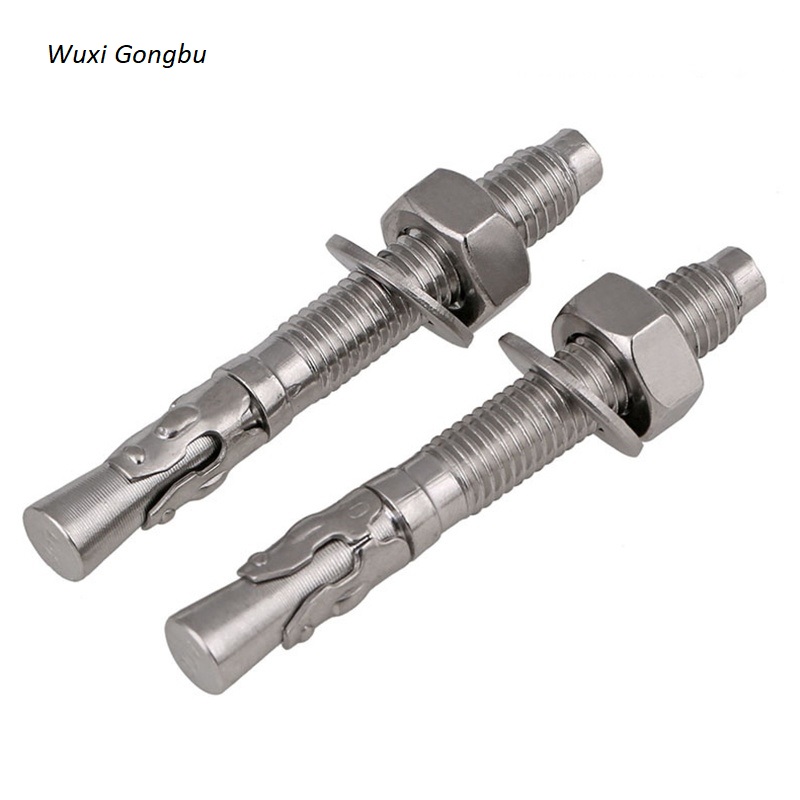

| Anchor Bolt |
A 4-station bolt former can be used to make the anchor bolt. Wuxi Gongbu offers high-quality anchor bolt tooling. Wuxi Gongbu fastening solution provider manufacturer of custom fasteners, fastener tools, and machines.
 |
| Anchor Bolt Process Drawing |
The above drawing shows the output of each station of the bolt former. Below will show you each station punch and Mold side tooling.
 |
Anchor Bolt Tooling 1st Mold/Die
 | Anchor Bolt Tooling 2nd Mold/Die
|
|
 |
| Anchor Bolt Tooling 3rd Mold/Die |
 |
Anchor Bolt Tooling 4th Mold/Die
|
 |
| Anchor Bolt Tooling 4th Punch |
These are tooling sets used to manufacture Anchor Bolts in bolt formers. Wuxi Gongbu provides fastening solutions from China. We are a manufacturer and supplier of customized industrial fasteners, fastener tools, and fastener machines worldwide.Contact us if you need any help with cold forging, nut/bolt manufacturing, or special parts manufacturing.
